Cohesive bandage production line / Self- dhesive Bandage Glue Coating Machine
1970.01.01 From:China Hefei Kerrian Machinery Co.. Ltd.
Self- dhesive Bandage Glue Coating Machine Cohesive bandage production line

 \\

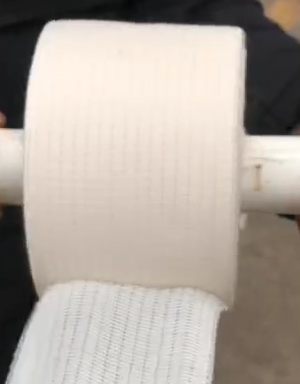

This adhesive bandage glue coating machine is used to produce medical self-adhesive bandages.
It adopts single-arm structure for loading and unloading the material easily and can coat the material up to a width of 200mm, it is standard and ideal equipment for one-person operation. If it is equipped with the tension controller of magnetic powder, you can obtain high production efficiency

Technical parameters
  1. Coating method: transfer coating
  2. Max. available coating width: as the product’s width
  3. Equality level: ±3g
  4. Max. line speed: 2m/min
  5. Length of all roller: 240mm
  6. Max. unwinding diameter: 400mm
  7. Unwinding equipment: 2 set
  8. Rewinding equipment: 1 set
  9. Power: app. 60KW
  10. Power supply: ~380V±15%  50Hz
  11. The quantity of glue can be adjusted independently or synchronously with the main machine.
  12. Size of machine: 2100x950x1300mm
