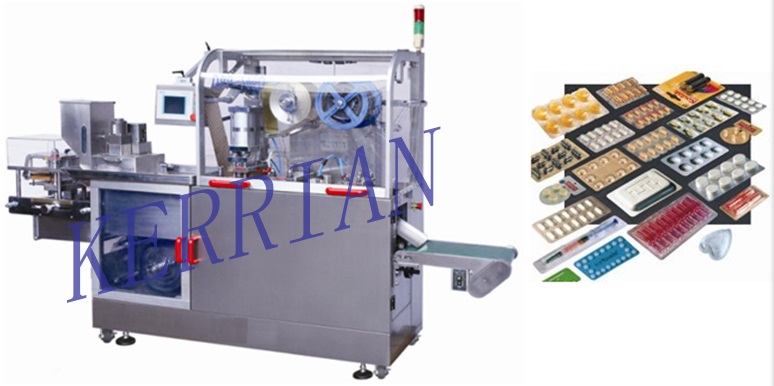

Blister packing machine for tablet, pharmaceutical packing machine.

·Plexiglas Cover and PLC touch screen can be added for option.（as above pic）

· We have other model which can interchange between AL-PL and AL-AL packing by change mould, feeder and some spare parts.

·Eye marking sealing device with sensor trace can be added for option.

Applications
150C Aluminium Plastic/ duralumin Packing Machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but various kinds. It can automatically finish the process of feeding, forming, heat-sealing, pressing, batch number printing, and punching. It is the ideal equipment with convenience operation, full purpose function. The product is made under CE and GMP standard. The machine can be adopted with PLC, frequency converter and touch screen operation instead of standard PC board controller as picture shows.

Usage

It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-Plastic or Paper-Plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

Features:

1. Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.

2. Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.

3. With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.

4. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.

Technical Parameters
